2D CAD Services

Need 2D Drawings Converted into CAD?

Blue Prints for 2D Conversion

Blue Prints for 2D Conversion

Do You have Drawings You need Converted into CAD?

Are you a CAD Drafter, Project Manager, or CAD Design Engineer that has numerous 2D flat files in storage?
Would you looking for a 2D CAD service to convert them into CAD?

Are you an Engineering Manager for a Utilities Company, Aerospace Corp, or a Heavy Manufacturing Facility?
Would you like your flat files converted into CAD or possibly a 3D Model?

Maybe you are heavily involved in a Document Control scenario.
Would you like to get your drawings converted into CAD?

If so then you, have come to the right place. CAD/CAM Services can help you with all of your CAD Conversion project needs!

Where is that Site-Plan?  Where is that Drawing?

Man drowning in papersTrying to find your 2D flat files can be an aggravating experience.

Someone else always has that one drawing you are looking for.  You know, the one drawing you need to finish that project that was due yesterday.

Even trying to update your existing flat file can become a major hassle. You know, you’ve been there before.

Yet, still many companies have drawers and drawers filled with 2D flat files.
Unfortunately a multitude of issues can occur when trying to work with and store all of these flat files.

Problems with 2D Flat Drawings:

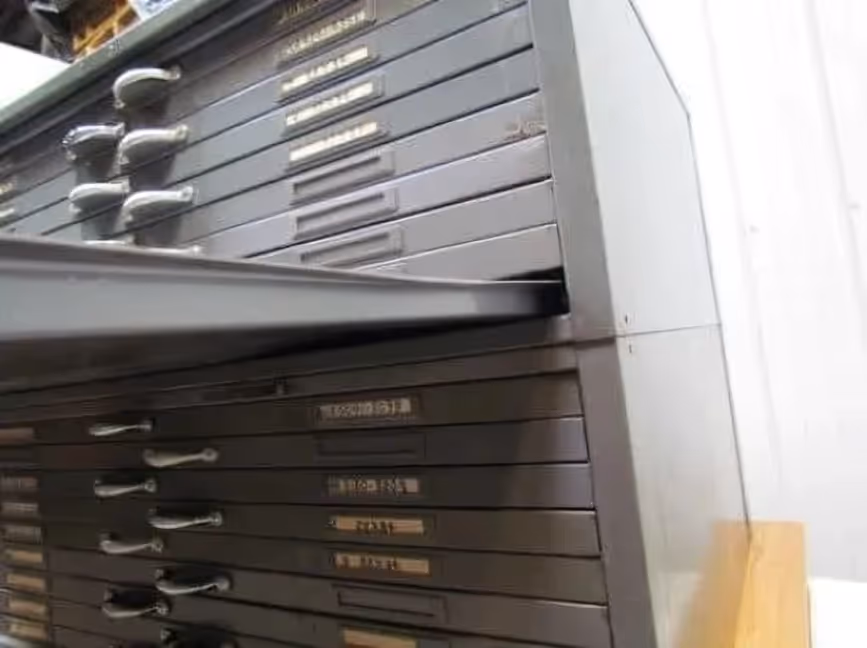

Engineering blueprint drawers for storage

Engineering blueprint drawers for storage

  • often get lost
  • unable to edit
  • unable to update
  • disintegrates over time
  • drawings often get misfiled
  • media physically changes in size
  • data fades and becomes unreadable
  • data is often inaccurate and outdated



By now, you have possibly started converting your 2D flat files into intelligent CAD Perfect files.

Maybe you have considered taking them all the way into a 3D model.  Possibly simulation.

The benefits you will achieve from using a CAD service to convert your flat files into CAD, are far reaching and will pay dividends for many years to come.

Benefits of Converting 2D Flat Files into CAD:

Benefits of CAD Conversion Efficiency Quality Speed Cost

  • speed & efficiency
  • quality & accuracy
  • repeatability
  • archival
  • ease of updating & editing
  • preparation for 3D Model
  • small enough files to email
  • as built confirmation
  • on site inspections & verifications
  • cost over time

Welcome to CAD / CAM Services,
your professional experts in CAD Conversion.

Lets Get Started Marker

Lets Get Started Marker

We handle all types of conversion for Architects, Engineering, Construction, Manufacturing, Aerospace and other industries. Just ask us… we can probably do it.

We have an AS9100 certificate, and are one of the few authorized CAD Conversion companies certified by the Department of Defense.

We are proud to be one of the few CAD companies in the world which can produce CAD drawings that meet the accuracy specification of both the military and the aerospace industry.

We employ skilled engineers and technicians who are knowledgeable in: AutoCAD; Navisworks; MicroStation; SolidWorks; CATIA; Aero Space; Architecture Services.

We provide a seamless blend with your team for editing and converting your technical drawings, maps, archive drawings, schematic diagrams photos and other types of line artwork from raster to different vector formats.



Group of Professionals with thumbs up

100% Customer Satisfaction Guaranteed!

Our company converts raster files to nearly any 2D or 3D format.

We appreciate each client we have, and we treat your work as if it is our own. Our reputation is based on your success.

Finally, CAD / CAM Services offers you a no-hassle guarantee.

Once you have received any file that we’ve converted, please check it and if you are not completely satisfied with it, just let us know and we will fix it within 24 hours at no additional cost!

If you are not 100% satisfied with our work, we will refund your money. No hassles, no debates. 100% Customer Satisfaction Guaranteed!

Give us a call today!       1-800-938-SCAN (7226)
